BD-OTU25G 是北亿纤通推出的4路25G速率的业务接入和波长转换板卡；该板卡接入4路25.6Gbit/s~28.1Gbit/s速率的业务，进行3R再生和波长转换，输出标准波长的DWDM或CWDM光信号，以便于接入合波板卡进行传输和分波板卡进行解波
功能示意图

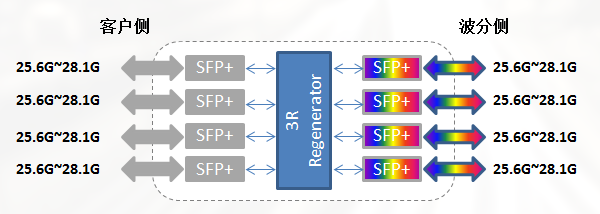

图 2 BD-OTU25G功能示意图
产品规格
表 1 产品规格
|
产品型号 |
FT-27-BD-OTU25G |
|
基本功能 |
支持4路双向25.6 Gbit/s~28.1 Gbit/s业务接入和传输 支持8路单向25.6 Gbit/s~28.1 Gbit/s业务接入和传输 |
|
接入业务类型 |
25G 业务 |
|
占用业务槽位 |
占用1槽位, 适用于ISAP161/261/561平台 |
|
WDM 技术 |
支持DWDM: C Band, 100GHz or 50GHz 支持CWDM：1270nm~1610nm |
|
3R技术 |
支持3R功能:再放大(Re-amplifying), 再定时(Retiming),再整形( Re-shaping) |
|
网管功能 |
支持端口工作状态监测：发送光功率、接收光功率、温度等 支持工作速率自适应 |
|
接口 |
支持8个可插拔的SFP28模块，LC/UPC |
|
典型功耗 |
20 W |
