BD-OTU200G-C是我公司推出的200G相干传输板卡，客户侧接入2路100G业务，线路侧出1路200G相干信号。板卡采用200G DP-8QAM/DP-16QAM调制码型和相干技术，降低了高速率信号对OSNR的要求，CD容限和PMD容限及非线性等方面的挑战，为传输网提供单通道200G传输的解决方案。

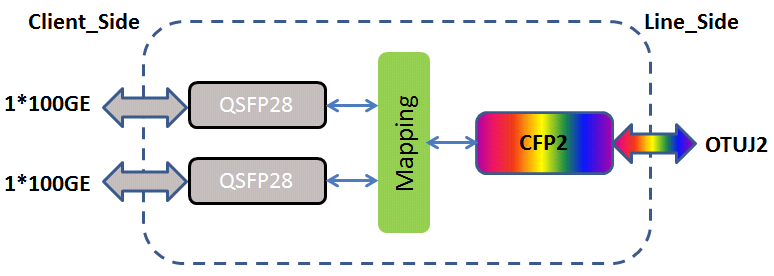

功能示意图
图 2 BD-OTU200G-C功能示意图
产品规格
表 1 产品规格
|
产品型号 |
FT-27-BD-OTU200G-C |
|
基本功能 |
支持2路100G业务的接入，并将2路100G信号转换成1路200G相干光信号，输出符合DWDM波长要求的ODU2J光信号 |
|
接入业务类型 |
100G以太网 |
|
占用业务槽位 |
2槽位, 适用于ISAP161/261/561 |
|
波分技术 |
支持DWDM波分: C Band, 100GHz or 50GHz |
|
3R技术 |
支持3R功能:再放大(Re-amplifying), 再定时(Retiming),再整形( Re-shaping) |
|
网管功能 |
支持端口工作状态监测：发送光功率、接收光功率、温度等 支持端口环回和端口开启/关闭 支持线路侧工作模式和波长设置 |
|
客户侧接口 |
支持2个QSFP28模块，LC/UPC接口 |
|
线路侧接口 |
支持1个CFP2-DCO模块, LC/UPC接口 |
|
典型功耗 |
