OSC板卡作为波分传输系统管理的重要板卡，通过OSC板卡可以实现多个站点设备的统一网管。OSC板卡可应用OA站、OADM站和OTM站点，通过1490/1510nm波长传输管理信息，实现整个网络系统接入统一的管理平台进行管理。

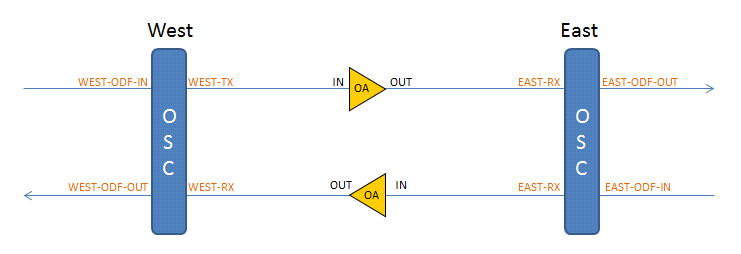

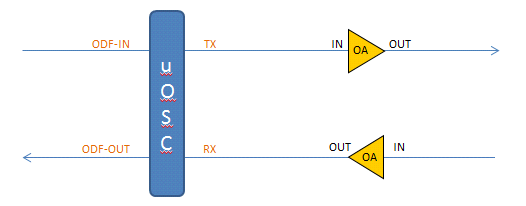

功能示意图
产品规格
表 1 OSC产品规格
|
产品型号 |
FT-27-OSC |
|
工作波长 |
1490/1510nm |
|
所占业务槽位 |
1槽位，适用于ISAP161/261/561 |
|
接口 |
3*RJ45 + 2*光接口 (uOSC单方向) 2*RJ45 + 4*光接口 (OSC双方向) |
|
光接口类型 |
LC/PC |
|
典型功耗 |
5 W |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
