OLP板卡是光线路保护板卡，它主要的功能是实时监测主备用线路的光信号状态，当发生线路故障或线路劣化，可自动在主备用线路之间倒换，保证系统业务能够在50ms以内恢复，从而保证了业务的正常工作。

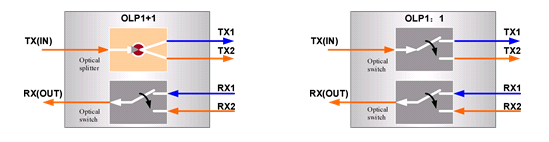

功能示意图
OLP板卡功能示意图
产品规格
表 1 OLP产品规格
|
产品型号 |
FT-27-OLP(1+1) |
FT-27-OLP(1:1) |
|
|
工作波长范围 |
1260nm~1650nm |
||
|
所占业务槽位 |
占用1槽位, 适用于ISAP161/261/561平台 |
||
|
切换时间 |
＜20ms |
＜40ms |
|
|
插损 |
TX-TX1 |
＜4.0 dB |
＜1.0dB |
|
TX-TX2 |
＜4.0 dB |
＜1.0dB |
|
|
RX1-RX |
＜1.5dB |
＜1.5dB |
|
|
RX2-RX |
＜1.5dB |
＜1.5dB |
|
|
检测光功率范围 |
-50 dBm~ + 25 dBm |
||
|
网管功能 |
支持端口实时监测：包括发送光功率、接收光功率、工作通道、保护通道 支持线路切换 |
||
|
接口 |
LC/UPC |
||
|
典型功耗 |
5W |
||
