BD-FEC10G: 10G FEC板卡

BD-FEC10G: 10G FEC板卡

FEC10G板卡集成了FEC(Forward Error Correction), FEC是一种具有FEC编解码功能的双向转发设备,专门用于SDH STM-64/SONET OC192/10GELAN传输系统。10G FEC可以降低对系统OSNR的要求,从而延伸传输距离。

功能示意图

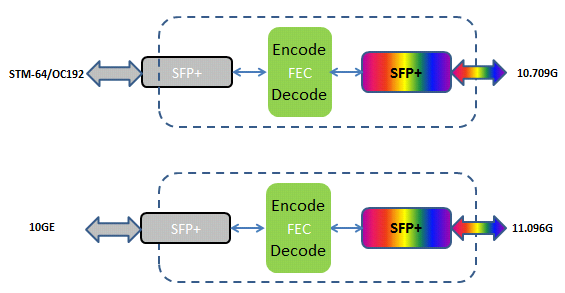

图 2  FEC板卡功能示意图

产品规格

表 1  产品规格



产品型号

FT-27-BD-FEC10G

基本功能

支持1路双向STM-64(OC192)/10GELAN业务接入

FEC功能提升系统OSNR值8dB

接入业务类型

STM-64,OC192

10GELAN

所占业务槽位

占用2槽位, 适用于ISAP161/261/561平台

WDM技术

支持DWDM:C Band, 100GHz or 50GHz

3R技术

支持3R功能:再放大(Re-amplifying), 再定时(Retiming),再整形( Re-shaping)

编码增益

8dB@BER=E-15

接口类型

LC/UPC

典型功耗

20 W









Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
