10/100M转8口485/422隔离串口服务器（FT-BC-6808MT-I）

产品概述
FT-BC-6808MT-I串口服务器提供串口转网络功能，能够将RS-485/422串口转换成TCP/IP网络接口，实现485/422串口与TCP/IP网络接口的数据双向透明传输。使得串口设备能够立即具备TCP/IP网络接口功能。

规格参数
处理器 ：32bit 400MHZ
内存： 128M
以太网接口： 10/100M（内嵌1.5KV电磁隔离）自适应MDI/MDI-X 以太网接口，接口方式RJ45
串口标准： RS-485、RS-422信号隔离输出
串口端口： 8×4Pin 3.81mm接线端子
指示灯： 电源指示灯PWR、运行指示灯RUN
电源接口： DC-005 DC座子或者3Pin 5.08mm端子供电方式,内置有防反接保护,避免正负接错损坏设备
供电范围： DC12~36V（电源输入与输出隔离）
功能按键： 1个出厂复位按键RESET
最大功耗： 4.2W
外壳： 金属外壳，保护等级达IP30
运行环境：
储存温度: -40~85°C
工作温度: -40~85°C
相对湿度: 5% ~95% (无凝结)

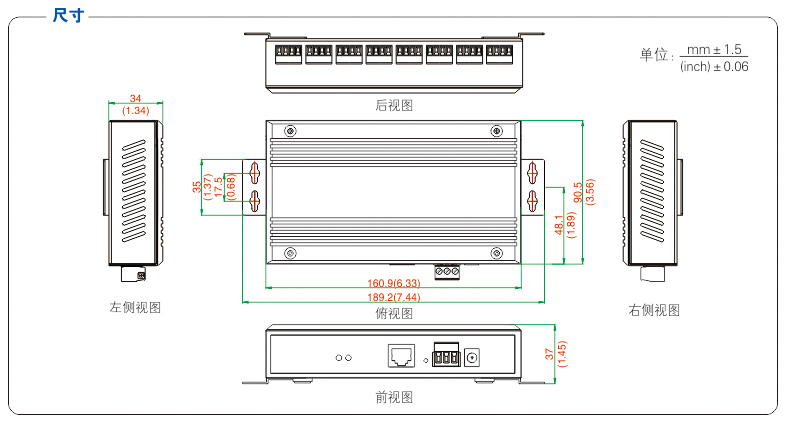

尺寸： L×W×H 161mm×91mm×37mm（不含安装件）
净重： 350g

注：本产品有全国产化型号可选
