10/100M转1口RS-485/422串口服务器(FT-BC-6011M)

产品概述
FT-BC-6011系列串口服务器提供串口转网络功能，能够将RS-485/422串口转换成TCP/IP网络接口，实现RS-485/422串口与TCP/IP网络接口的数据双向透明传输。使得串口设备能够立即具备 TCP/IP网络接口功能。

规格参数
处理器:25MHz
内存:数据缓存空间每口≥2KB
网口:RJ45接口10/100M(浪涌10/700us 共模:1000V/差模500V)自适应MDI/MDL-X
网络协议:IP、ICMP、UDP、TCP
系统支持:Windows/XP/2003/win7/win8/win1032/64bit
操作模式:TCP SERVER，TCP CLENT， UDP， Modbus SERVER主模式，Modbus CLIENT 主模式，Modbus SERVER从模式，Modbus CLIENT 从模式
主机数量:可支持2主机同时连接
配置方式:串口配置工具
串口数量:1路，5.08-5PIN端子
串口保护:RS-485/422浪涌 10/700us 共模/差模0.5KV
波特率:110-921600bps
校验位:None、Odd、EvenMark、Space
数据位: 8
停止位:1、2
流量控制:RTS/CTS
电源电压:5V(4.75~5.25V)
工作电流:158mA
电源接口:5.08mm2Pin 接线端子和DC插座
工作温度:-40°℃~+85℃
存储温度:-40°℃~+85℃
相对湿度:5%~95%RH，无凝露

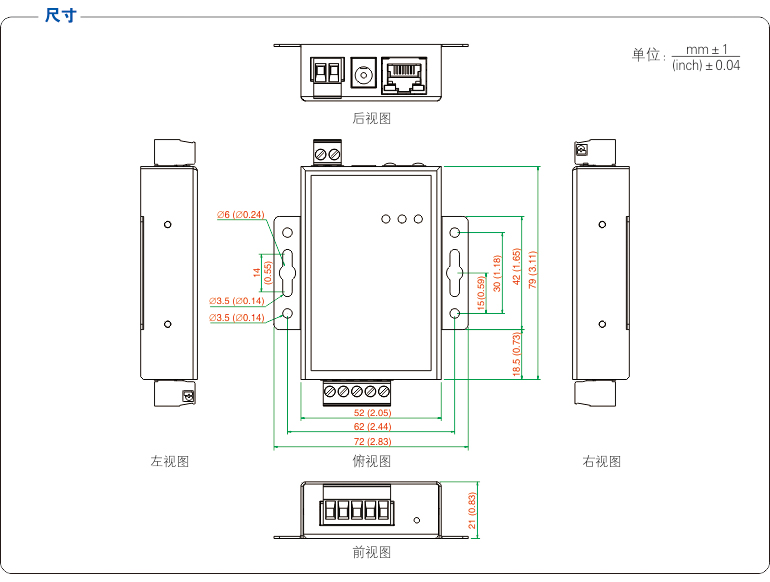

尺寸图

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
