产品简介：Yilut's AWG module offers accurate channel and high reliability based on the silica which is from silicon technology and complemented with automated and robust packaging
| Key Features： MUX/DEMUX functionality
Athermal design, electrical power is no required
compact package
Multi-channel number
Gaussian, and Flat Top filter shape
Low Insertion Loss,Low PDL,High Channel Isolation
Qualified Under Telcordia 1209/1221 and ROHS compliant
|
Apllications： DWDM transmission Metro Area Networks Long Haul Networks PON networks Building blocks for ROADM Building blocks for VMUX |
Optical Specifications:
| Parameter | Unit | Value | ||
| Min. | Max. | |||
| Channels | 16 | 48 | ||
| Channel Spacing | GHz | 100 | ||
| Operating Band | THz | C Band & L Band | ||
| Center Wavelength Accuracy | nm | -0.04 | 0.04 | |
| 1dB Bandwidth | nm | 0.38 | ||
| 3dB Bandwidth | nm | 0.56 | ||
| Insertion Loss | dB | 5.5 | ||
| Ripple | dB | 0.5 | ||
| Insertion Loss Uniformity | dB | 1.5 | ||
| Adjacent Channel Crosstalk | dB | 23 | ||
| Non-Adjacent Channel Crosstalk | dB | 30 | ||
| Total Crosstalk | dB | 21 | ||
| Polarization Dependent Loss | dB | 0.5 | ||
| Polarization Mode Dispersion | ps | 0.5 | ||
| Chromatic Dispersion | ps/nm | -20 | 20 | |
| Return Loss | dB | 40 | ||
| Fiber | Input | >mm | φ0.9 | |
| Output Ribbon | > | |||
| Fan-out | >mm | φ0.9 | ||
* Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
Environmental Conditions:
| Parameter | Unit | Value | |
| Min. | Max. | ||
| Operating Temperature | ℃ | -5 | 65 |
| Storage Temperature | ℃ | -40 | 85 |
| Operating Humidity | %RH | 93 | |
| Storage Humidity | %RH | 93 | |
Packaging Specifications:
| Parameter | Unit | Value |
| >Package Size | >mm | >150×65×16 |
| >Package Material | > | >ABS |

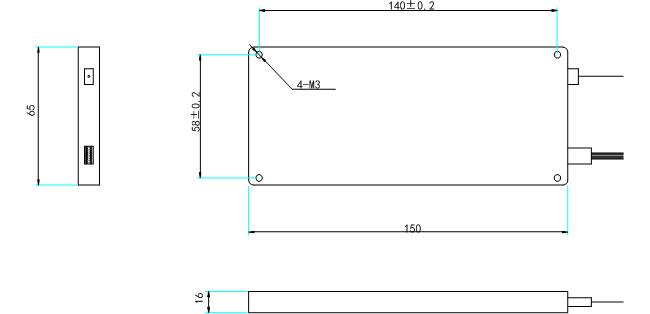

Device Schematic Drawing:
Plastic Box(150X65X16mm)

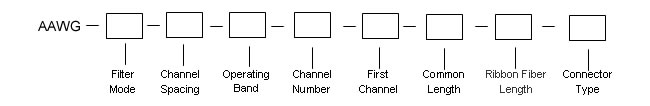

Order Information
| Filter Mode | F=Flat -Top ；G=Gaussian；B=Broad Gaussian |
| Channel Spacing | 100=100GHz ；200=200 GHz |
| Operating Band | C=C Band； L=L Band；CL=C Band & L Band；X=Others |
| Channel Number |
08=8 Channels；40=40 Channels；48=48 Channels；X=Others |
| First Channel |
C21=C21；C22=C22；L71= L71； X=Others |
| Common Length |
05--20=0.5--2.0m； X=Others |
| Ribbon Fiber Length | 05--20=0.5--2.0m； X=Others |
| Connector Type | FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, |
| ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
