产品概述

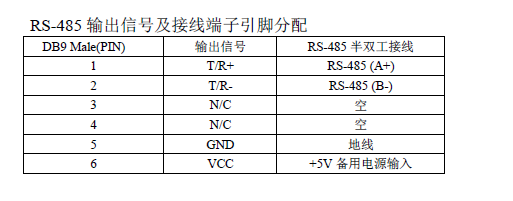

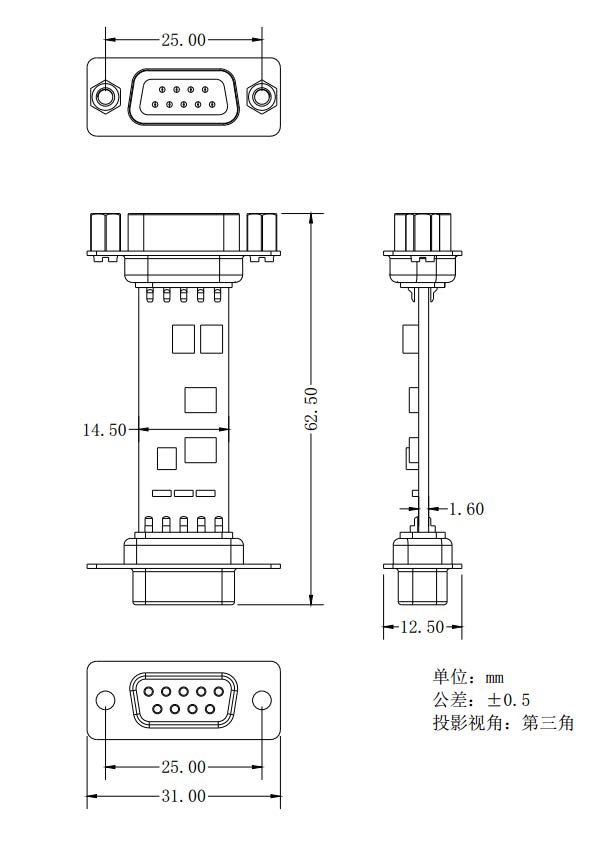

本产品外形采用DB-9/DB-9 通用转接插头，其中，T/R+、T/R-代表收发Ａ+、Ｂ-，VCC代表备用电源输入， GND 代表公共地线。点到点、点到多点、半双工通信接两根线(T/R+、T/R-)， 接线原则“发/收+”接对方的“发/收+”、“发/收-”接对方的“发/收-”。
RS-485 半双工模式接线时，将T/R+（发/收+）接对方的A+、T/R-，（发/收-）接对方的B-。
注：本产品有全国产化型号可选
