10/100M TCP/IP转RS-232/485/422串口服务器(FT-BC-620)

产品概述
FT-BC-620是为TCP/IP到RS-232/422/485之间完成数据转换的通讯接口转换器，广泛应用于工业控制、门禁系统、考勤系统、售饭系统、POS系统、楼宇自控系统、电力系统、监控及数据采集系统、自助银行系统等。

其内建的RTOS  （实时操作 系统）及完整的TCP/IP通讯协议可使UT-620不只提供可靠稳定的操作平台，更可使原有系统简便且快速的经由Internet进行远程管理。

规格参数
网络接口：符合IEEE 802.3 10/100M接口
串行接口：RS-232/422/485三合一自适应接口
串行接口速率：1200-230.4Kbps
数据流控：XON/XOFF或RTS/CTS
工作电压：9-30VDC(可选9-48VDC)
工作电流：350mA
传输介质：双绞线或屏蔽线
外形尺寸：97mm×65mm×22mm
使用环境：-25℃ 到 70℃，相对湿度为5%到95%

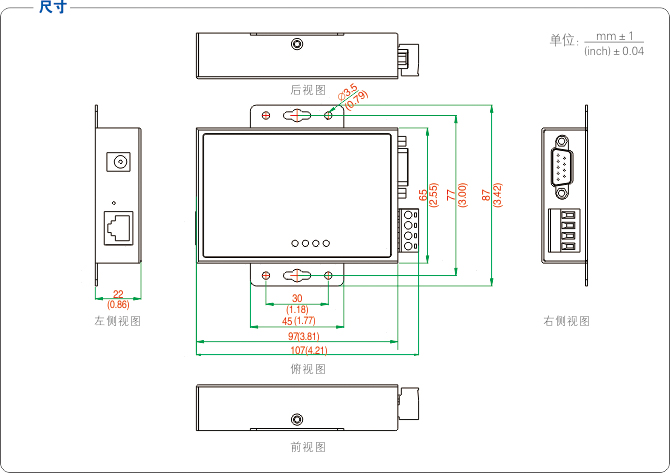

 尺寸图

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
