10/100M转2口RS-485/422串口服务器(FT-BC-6802MT-I)

产品概述
FT-BC-6802MT-I串口服务器提供串口转网络功能，能够将RS-485/422串口转换成TCP/IP网络接口，实现RS-485/422串口与TCP/IP网络接口的数据双向透明传输。使得串口设备能够立即具备TCP/IP网络接口功能。

规格参数
处理器： 32bit 400MHZ
内存： 128M
以太网接口： 10/100M（内嵌1.5KV电磁隔离）自适应MDI/MDI-X 以太网接口，接口方式RJ45
串口标准： RS-485、RS-422信号隔离输出
串口端口： 2×4Pin 3.81mm接线端子
指示灯： 电源指示灯PWR、运行指示灯RUN、串口数据收发指示灯DATA1、DATA2。
电源接口： DC-005 DC座子或者3Pin 5.08mm端子供电方式,内置有防反接保护,避免正负接错损坏设备
供电范围： DC12~36V（电源输入与输出隔离）可选DC12~48V非隔离
功能按键： 1个出厂复位按键RESET
最大功耗：1.6W
外壳： 金属外壳，保护等级达IP30
运行环境:
储存温度: -40~85°C
工作温度: -40~85°C
相对湿度: 5% ~95% (无凝结)

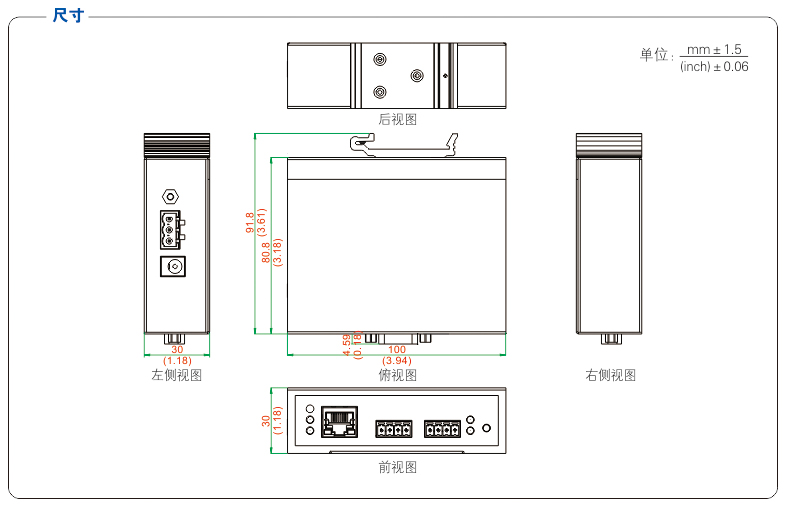

尺寸: L×W×H 100mm×80.8mm×80mm（不含安装件）
净重: 350g

注：本产品有全国产化型号可选
